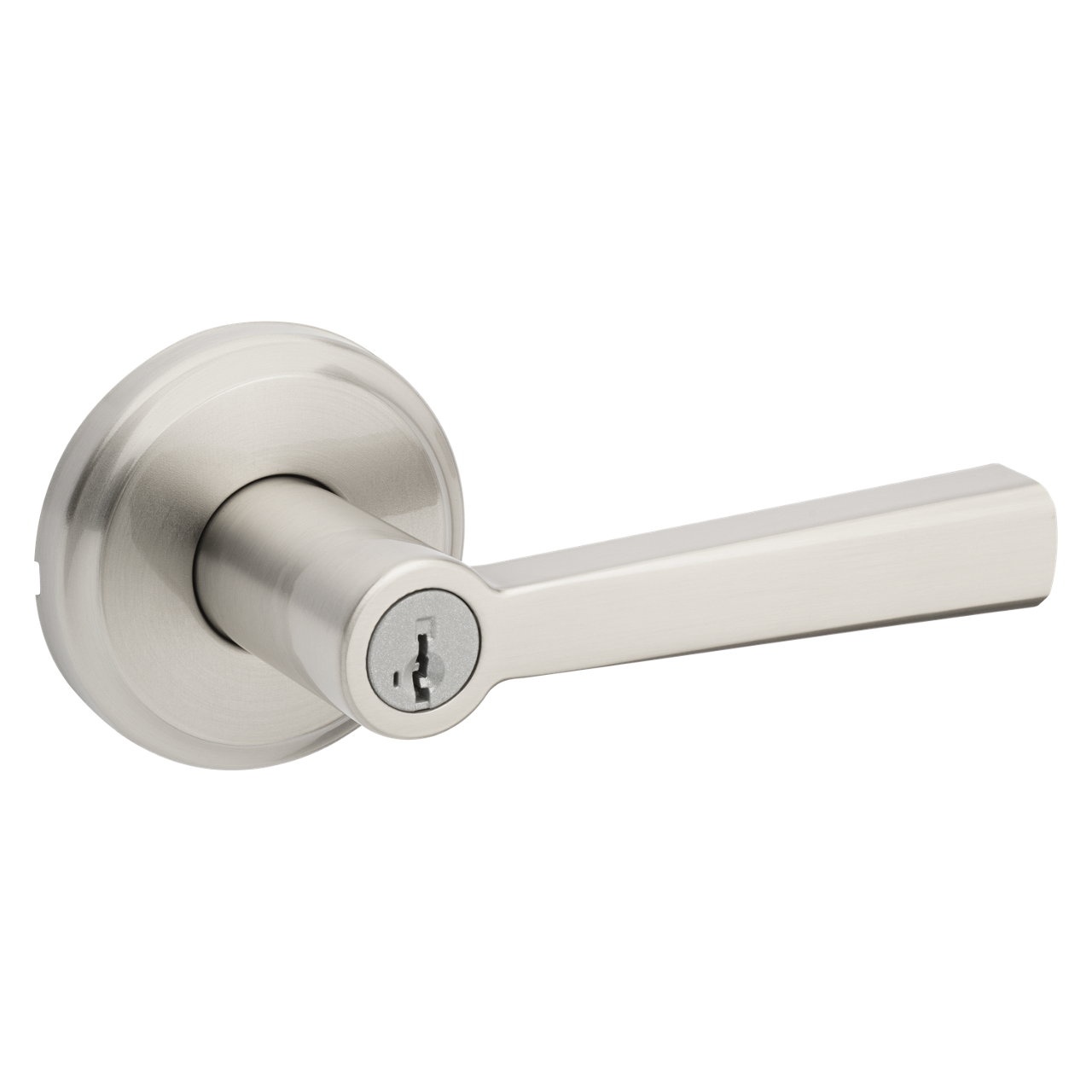

Trafford Lever - Keyed - featuring SmartKey -

Elevate your space with the timeless Trafford™ family. The unique soft curve adds a sophisticated touch to any home aesthetic, while the designer rosette imparts a warm and welcoming feel to your doors. Adorn your interior and exteriors with Trafford™ levers, and enjoy our highest level of security, easiest installation and peace of mind.

Features

For use on exterior doors where keyed entry and security is needed
Featuring SmartKey Security™, which protects against advanced break-in techniques and allows you to re-key your lock yourself in seconds.
SmartKey Security™ re-key technology is compatible with Kwikset (KW1) keyway or (SC1) keyway options
Comes with 2 keys
Latch has 2 interchangeable faceplates; round corner and square corner
ANSI/BHMA grade 2 certified
Latch has adjustable backset 2-3/8" to 2-3/4" to fit all standard door preparations
Locking mechanism functions by pressing the push button on the interior of the lock
Fully reversible lever, can be installed on both right handed and left handed doors
Easily installs in minutes with just a screwdriver
Lifetime mechanical and finish warranty
Available in Retail and Wholesale Packaging

Specifications

All Measurements are in Inches

Specifications

Unique Product ID

9GLA5350-193 | GLA535 TDL15 SMT MS 4LS1 | Available Online/ In - Store

9GLA5350-195 | GLA535 TDL15 SMT K2 B | Wholesale - Not Available at Retail
Family

Trafford
Product Type

Lever
Style
Traditional
Entry Has Smart Key
Yes
ANSI Grade
Grade 2
Min Door Thickness
1-3/8
Max Door Thickness
1-3/4
Assembled Length
2-19/32
Assembled Width
4-5/32
Assembled Height
2-21/32
Lever Handling
Reversible
Backset Size
Adjustable
Cross Bore
2-1/8"
ADA Compliant
No
Packaging
Available Online/ In - Store
